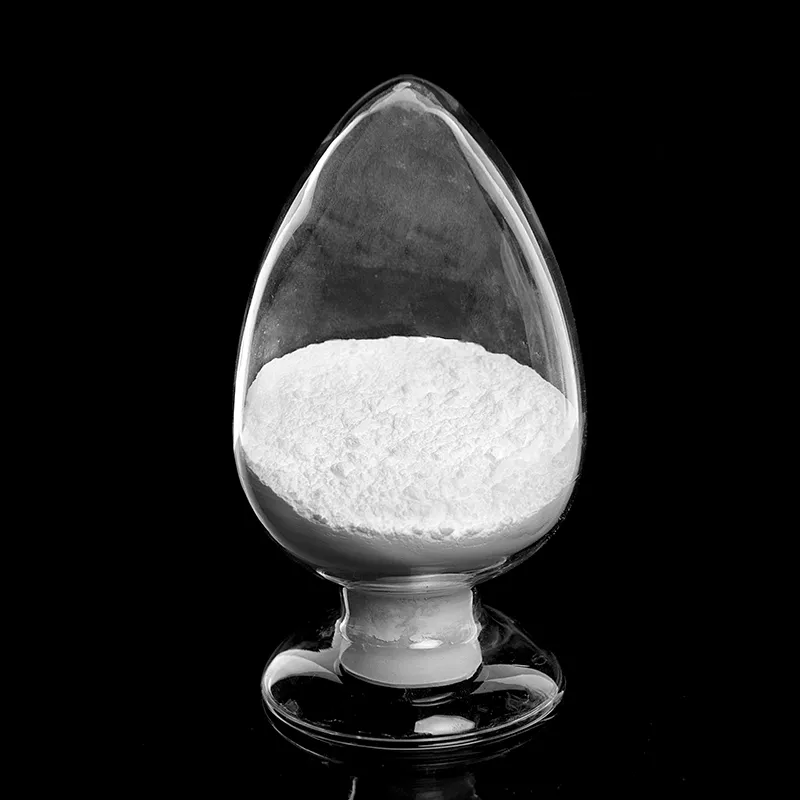

With accelerated construction of ultra-high voltage (UHV) power grids, high-alumina ceramic insulators — core insulating components for transmission lines — demand strict specifications for alumina raw materials in terms of purity, impurity control, powder particle size and sintering compatibility. Geatsun Aopeng Group focuses intensively on the R&D and manufacturing of premium calcined α-alumina. We have developed a proprietary 5G-grade alumina micropowder tailored for electrical ceramics, engineered to match the operating conditions of disc suspension, long rod, post and other high-alumina insulator products. This material is now supplied steadily to top domestic electrical ceramic manufacturers. Delivering superior raw material performance, it solves key production bottlenecks across the industry and enables all-round improvements to insulators’ mechanical and electrical properties.
The core requirement for high-alumina electrical porcelain lies in building a high-strength insulating framework using alumina, while strictly controlling harmful impurities to avoid production and operational problems such as leakage, blackening of the porcelain body, firing cracks, and flashover breakdown. Sodium and iron impurities are key factors restricting the lifespan of high-voltage porcelain insulation: excessive sodium oxide easily forms conductive channels, increasing leakage current and reducing the insulator's resistance to flashover; excessive iron oxide causes the porcelain to darken in color, increases dielectric loss, and significantly shortens the power grid's service life. Conventional alumina powder has uneven particle size and many coarse particles remaining, resulting in density stratification of the green body after molding, and is prone to porosity and cracks during firing, significantly reducing the electromechanical damage load on the insulator.
Geatsun Aopeng Group’s 5G-grade alumina fully satisfies all technical specifications for high-alumina electrical ceramics and delivers remarkable performance across core indicators. The alumina boasts an Al₂O₃ purity of 99.7%. Its high-purity corundum crystal phase forms a robust structural framework inside ceramic bodies, greatly boosting insulators’ bending strength, thermal shock resistance and arc erosion resistance. The material fits all AC and DC ultra-high voltage applications ranging from 35kV to megavolt levels.
We maintain industry-leading impurity control standards: Fe₂O₃ content is limited to as low as 0.0054%, which fundamentally prevents black discoloration on ceramic parts. Na₂O content is stably kept at 0.1509%, fully complying with low-sodium raw material requirements for high-voltage electrical ceramics. This restrains ion migration and sustains stable insulation performance over long service lifespans. Trace SiO₂ and CaO contents are precisely regulated, granting excellent compatibility with formulas consisting of kaolin, feldspar and quartz. The firing process generates evenly distributed liquid phases, drastically cutting down common defects including air bubbles and pinholes.
Tailored optimization is applied to our powder processing technology to achieve balanced and controllable particle size distribution: the D50 median particle size reaches 5μm with a primary crystal size of 2.5μm. The well-proportioned particle grading delivers excellent plasticity to ceramic slip, making the material compatible with mainstream forming technologies including isostatic pressing and rotary casting. The formed blanks feature smooth surfaces without burrs. All material passes through a 325-mesh sieve with no coarse particles retained, ensuring consistent and stable blank density.
This alumina features a true specific gravity of 3.95 and delivers outstanding sintering densification. It significantly boosts finished product density and mechanical load capacity, effectively lifting production yields for large-tonnage suspension insulators and heavy-duty post insulators. Backed by Geatsun Aopeng Group’s 250,000-ton annual capacity of high-temperature calcined α-alumina, we offer consistent large-volume raw material supply for global electrical ceramic manufacturers.As a professional high-tech manufacturer, Geatsun Aopeng Group operates a full R&D system to continuously upgrade its custom 5G-grade alumina for electrical ceramic applications. The powder boasts tailored sintering activity matching the temperature zones of standard ceramic kilns, with steady, predictable firing shrinkage. Factories can integrate this material directly without extensive adjustments to their existing production lines.All raw materials go through full-process quality inspection in accordance with GB/T6609.5-2004. We conduct multi-dimensional verification via laser particle size analyzers and X-ray fluorescence diffractometers. Complete test reports are provided for every batch to ensure full traceability, delivering dependable raw material support for ceramic insulator production.
Whether for standard line insulators or core UHV ceramic bushings, raw material quality defines the safety benchmark of power grid operation. Geatsun Aopeng Group’s 5G dedicated alumina for electrical ceramics stands out with four core strengths: ultra-high purity with minimal impurities, precise particle size control, outstanding sintering compatibility, and reliable continuous supply. It establishes a robust quality foundation for high-voltage high-alumina ceramic insulators and delivers long-term operational safety support for power grid infrastructure worldwide.
